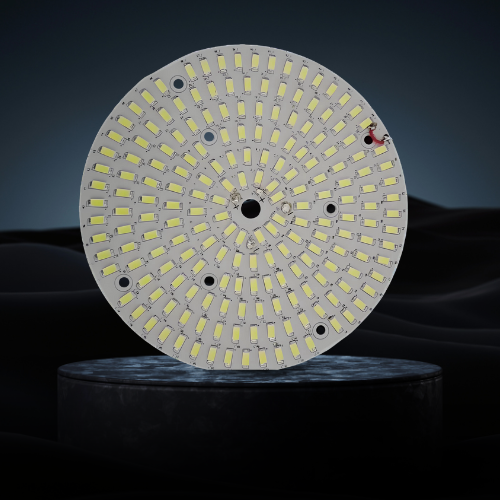

Aluminum Substrate PCB: Engineered for Superior Thermal Management

Introduction

Aluminum Substrate Printed Circuit Boards (PCBs) represent a significant advancement in thermal management technology structure, these PCBs integrate superior heat dissipation capabilities with robust mechanical stability, making them indispensable for high-power and high-temperature applications.

Core Advantages of Aluminum Base Material

1. Exceptional Thermal Conductivity
   Aluminum substrates feature a thermal conductivity typically ranging from 1.0 to 3.0 W/m·K (depending on dielectric layer composition), significantly outperforming traditional FR-4 materials (<0.5 W/m·K). This facilitates rapid away from critical components.

2. Enhanced Mechanical Rigidity
   The aluminum core provides structural integrity, reducing warpage during assembly processes and improving resistance to physical stress.

3. Lightweight & Recyclable
   Aluminum’s low density contributes to weight-sensitive designs, while its recyclability aligns with sustainable manufacturing practices.

Key Benefits of Aluminum PCBs

1. Optimized Heat Dissipation
   Direct thermal path from heat-generating components (e.g., LEDs core minimizes thermal resistance, preventing overheating and extending component lifespan.

2. Improved Power Density
   Efficient cooling enables higher power handling in compact designs, supporting miniaturization trends without compromising reliability.

3. Electrical Isolation
   A thermally conductive dielectric layer (e.g., epoxy or ceramic-filled) ensures electrical isolation while maintaining thermal transfer efficiency.

4. Cost-Effective Thermal Solution
   Aluminum PCBs eliminate the need for additional heatsinks or in many applications, reducing system complexity and BOM costs.

Applications & Performance Features

Target Industries

• LED Lighting Systems: High-power LED arrays (automotive, street lighting, grow lights)
• Power Electronics: Converters, inverters, motor controllers, and power supplies
• Automotive Electronics: ECU modules, headlight systems, battery management
• Industrial Equipment: High-current drivers, RF amplifiers, and thermal test Matching**: CTE (Coefficient of Thermal Expansion) compatibility minimizes solder joint stress.
• High Dielectric Strength: Withstands voltages up to >4 kV (customizable per dielectric specifications).
• Customizable Thickness: Aluminum cores (typically 0.8–3.0 mm) and dielectric layers tailored to thermal/electrical requirements.

Conclusion

Aluminum Substrate PCBs deliver unparalleled thermal performance in environments. By leveraging the intrinsic properties of aluminum and advanced dielectric technologies, these boards enable reliable, high-power designs while optimizing system cost and longevity.

For tailored solutions or technical specifications, contact our engineering team.
