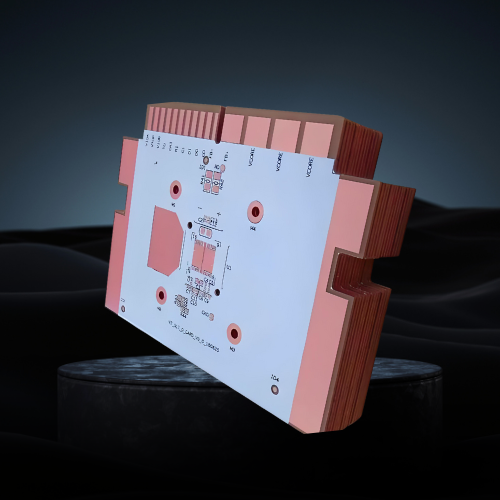

Copper PCB

    Special “Sandwich-Type” Copper Substrate
  • Layer Counts: 2 layers
  • Finished Board Thinckness: 1.0mm/1.2mm/1.6mm
  • Drill Hole Size: Copper holes: 0.3-2.0mm, non-copper holes: ≥1.0mm
  • Line Width/Spacing :0.10/0.10mm
  • Solder Mask Color: White, Matte Black
  • Character Color:Black (for white solder mask ink), White (for matte black and other solder mask inks), no characters on copper base surface
  • Copper PCB

Description

Copper PCB: Precision Engineering for Advanced Electronics
Overview
Copper Printed Circuit Boards (PCBs) represent the cornerstone of modern electronic design, leveraging copper's exceptional electrical and thermal properties to deliver unparalleled performance. Engineered for reliability across industrial PCBs provide a robust foundation for high-frequency, high-power, and miniaturized electronic systems.
Key Features & Advantages
1. Superior Electrical Conductivity
  • Copper's low electrical resistance (1.68 × 10⁻⁸ Ω·m) minimizes signal loss and power dissipation.
  • Ensures stable current transmission for high-frequency circuits (>10 GHz).
2. Enhanced Thermal Management
  • Thermal conductivity of 398 WK efficiently dissipates heat from active components.
  • Reduces thermal stress, extending component lifespan by up to 35% compared to alternatives.
3. Mechanical Durability
  • Tensile strength of 210 MPa withstands vibration, shock, and thermal cycling.
  • Compatible with lead-free (RoHS) and high-temperature (up to 300°C) soldering processes.
4. Design Flexibility
  • Supports high-density interconnects (HDI)
  • Configurable in single, double, or multilayer layouts (up to 48 layers).
5. Surface Finish Options
  • Electroless Nickel Immersion Gold (ENIG), Immersion Silver, or HAL (Hot Air Leveling) finishes available.
  • Optimized for solderability and corrosion resistance in harsh environments.
Target Applications
  • Power Electronics: Inverters, converters, and motor drives.
  • RF/Microwave Systems: 5G infrastructure, radar and satellite communications.
  • Automotive ECUs: Engine control units, ADAS sensors, and EV battery management.
  • Medical Devices: Diagnostic imaging equipment and implantable electronics.
Quality Assurance
All Copper PCBs undergo:
  • Automated Optical Inspection (AOI)
  • Impedance control (±5%)
  • IPC-A-600 Class 3 compliance
  • 100% electrical testing

Engineered to exceed industry standards (IPC-6012, UL 94V-0), Copper PCBs enable next-generation innovation while ensuring operational resilience. Contact our technical team to customize solutions for your critical projects.
