Solder Paste Application (SMT): For surface mount components, the fundamental capability is the precise application of solder paste to the designated pads on the PCB using a metal stencil. This ensures the correct amount of solder is applied exactly where needed.

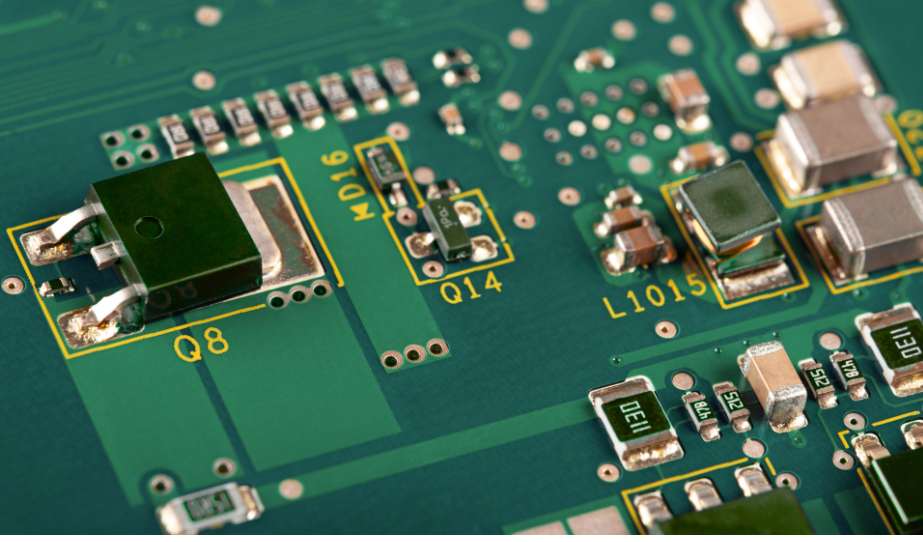

Component Placement: Components must be accurately placed onto the board.
Surface Mount Technology (SMT): Uses automated pick-and-place machines to mount tiny components directly onto the solder paste with high precision.
Through-Hole Technology (THT): Involves inserting component leads into pre-drilled holes, which can be done manually or with automated insertion equipment for high volume.
Soldering: This process creates a permanent electrical and mechanical connection.
Reflow Soldering (SMT): The board is passed through a reflow oven with a controlled temperature profile, which melts the solder paste and then cools it to form solid joints.
Wave Soldering (THT): The bottom of the board is passed over a "wave" of molten solder, which solders all component leads simultaneously on the underside of the board.
View Details for Printed circuit board requirement. PCB Assembly File
PCB files (Gerber files/other PCB files, etc.,) Centroid( Pick&place PNP file,or XY Data or files in other formarts)
Bill of material(BOM),including the details,such as designators. Parts description,manufacturer,and part number,quantity,package,etc. Any PCBA assembly data or documents/image/3D pictures. Drawing are more favorable for assembly,test procedures,any mechanical restriction such as height requirements. Board Pattern
Rectangular,circular and any polygon,special outline.
For special outline,we do suggest make panel PCB before assembly. Rohs or non Rohs Lead and Lead-Free ( Rohs complaint) Stencils In consider of solder reliability,we use laser cut stainless steel stencils for fine pitch and BGA,For PCBA order,SMD-stencil
if free of charge. Consigned/Kitted part number,quantity,description,package size. Turn-key service One-stop PCB Assembly service to save time and cost for clients. BGA BGA with X-ray and rework capability Soldering Type Surface mount(SMT),Thru-Hole(THT) and hybrid of both,single or double-sided placement,manual soldering and MNT machine. MOQ 5 sets PCBA
Package size
0201,0402,0603,0805,1206
Board Dimension Min board size:50mm*100mm ( Boards smaller than this size need to be panelized) Max Board size:250mm*500mm Quanlity Assurance
Wave soldering,Function testing,In-line AOI inspection,X-ray Inspection,Quanlity Gurantee is the basis of clients trust. Board type Rigid and Flexible PCB are available for assembly Rework and Repair
Taking account into the cost saving, rework and repair are supported, refund is also supported.
