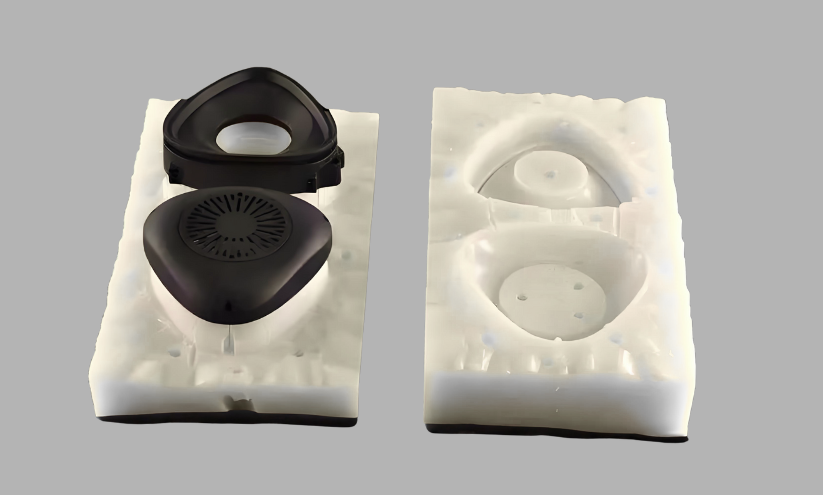

Prototype Duplication: Precision Replication with Advanced Silicone Tooling

Overview

Prototype Duplication is a specialized manufacturing solution designed for creating high-fidelity replicas of original master models. Utilizing Room-Temperature-Vulcanizing (RTV) silicone as the primary module tooling material, this process delivers exceptional accuracy and surface detail reproduction, making it ideal for rapid prototyping, small-batch production, and design validation.

Key Features & Advantages

1. Silicone-Based Module Tooling

• Material Superiority: Our tooling employs high-grade RTV silicone, renowned for its:
• Exceptional Detail Capture: Replicates complex geometries, fine textures, and undercuts with micron-level precision.
• Thermal Stability: Maintains dimensional integrity across repeated casting cycles and varying temperatures.
• Flexibility & Durability: Enables easy demolding without part damage, extending mold lifespan for multiple reproductions.

2. Distinct Advantages Over 3D Printing

While additive manufacturing serves specific purposes, Prototype Duplication offers unique benefits:

• Surface Finish Quality: Produces parts with superior cosmetic finishes directly from the mold, eliminating post-processing requirements common in 3D printing.
• Material Versatility: Supports a broader range of engineering-grade materials (e.g., urethanes, epoxies, biocompatible resins) compared to limited 3D printing filament options.
• Cost Efficiency for Multiples: Significantly reduces per-unit cost and lead time for small-to-medium batch production (5–50 units).
• True Material Properties: Allows casting of functional materials that accurately simulate final production parts (e.g., elastomers, glass-filled resins).

3. Comprehensive Material Support

Prototype Duplication accommodates diverse casting materials to meet functional and aesthetic requirements:

• Polyurethane Resins: Ideal for rigid/flexible prototypes, offering varying Shore hardness and thermal properties.
• Epoxy Systems: Suitable for high-strength, dimensionally stable parts with chemical resistance.
• Specialty Compounds: Including silicone rubber (for soft-touch components), flame-retardant grades, and colorable transparent resins.
• Biocompatible & FDA-Compliant Options: Available for medical device prototyping.

Applications

This technology excels in:

• Functional testing of complex assemblies
• Market validation with appearance models
• Bridge production before final tooling
• Customized medical/consumer product prototypes

Prototype Duplication bridges the gap between conceptual design and mass production, combining the precision of silicone tooling with material flexibility to deliver functional prototypes that accurately represent end-product performance.
