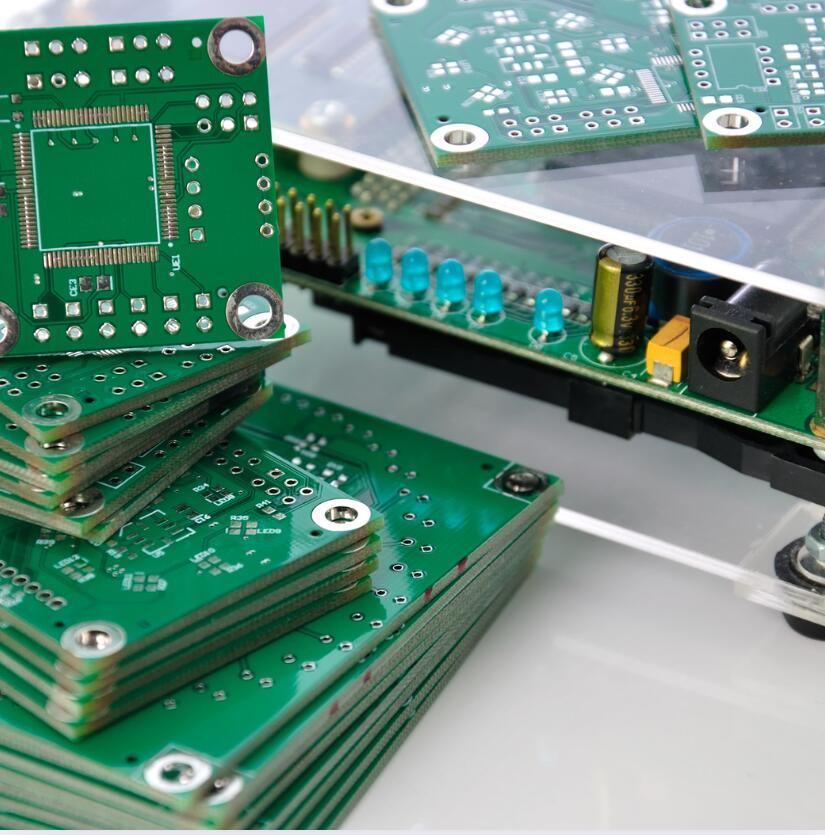

PTFE PCB

PTFE PCB: Advanced High-Frequency Circuitry Solutions

Overview
PTFE (Polytetrafluoroethylene) PCBs represent a pinnacle of high-frequency circuitry engineering, designed to meet stringent performance requirements in cutting-edge industries. Leveraging the unique properties of PTFE—a fluoropolymer renowned for its electrical and thermal stability—these printed circuit boards deliver unparalleled signal integrity and reliability in demanding environments.

Key Technical Advantages

1. Ultra-Low Dielectric Loss
   PTFE substrates exhibit an exceptionally low dissipation factor (Df ≈ 0.001–0.002) and stable dielectric constant (Dk ≈ 2.0–2.1) across wide frequency ranges (up to 110 GHz). This minimizes signal attenuation and phase distortion, critical for 5G/6G telecom, radar systems.

2. Thermal Resilience
   With a continuous operating temperature range of -200°C to +260°C, PTFE PCBs maintain structural integrity under extreme thermal cycling. Their near-zero coefficient of thermal expansion (CTE) ensures dimensional stability during rapid temperature fluctuations.

3. Chemical & Environmental Resistance
   Inherently inert to acids, solvents, and moisture, PTFE laminates resist corrosion, oxidation, and hydrolysis. This extends product lifespan in harsh industrial, aerospace, or marine applications.

4. High-Speed Signal Fidelity
   The ultra-smooth copper-clad surface (Ra < 0.3 μm) reduces skin effect losses, enabling precise impedance control for high-speed digital designs (e.g., 112G PAM4 interfaces). Applications

• RF/Microwave Systems: Antenna arrays, satellite transceivers, mmWave sensors.
• Defense & Aerospace: Avionics, radar modules, electronic warfare systems.
• Medical Electronics: MRI equipment, minimally invasive surgical tools.
• Automotive Radar: ADAS LiDAR and autonomous vehicle subsystems.

Quality Assurance

All PTFE PCBs undergo rigorous testing per IPC-6018 Class 3 standards, including:

• TDR-based impedance verification shock cycling (-55°C ↔ +125°C, 500 cycles)
• IST (Interconnect Stress Test) validation

Engineered for mission-critical performance, PTFE PCBs provide the foundation for next-generation electronics where signal purity, thermal endurance, and operational reliability are non-negotiable. Contact our engineering team to customize solutions for your high-frequency challenges.
